High Viscosity Liquid Transfer Pumps for Paste
Description

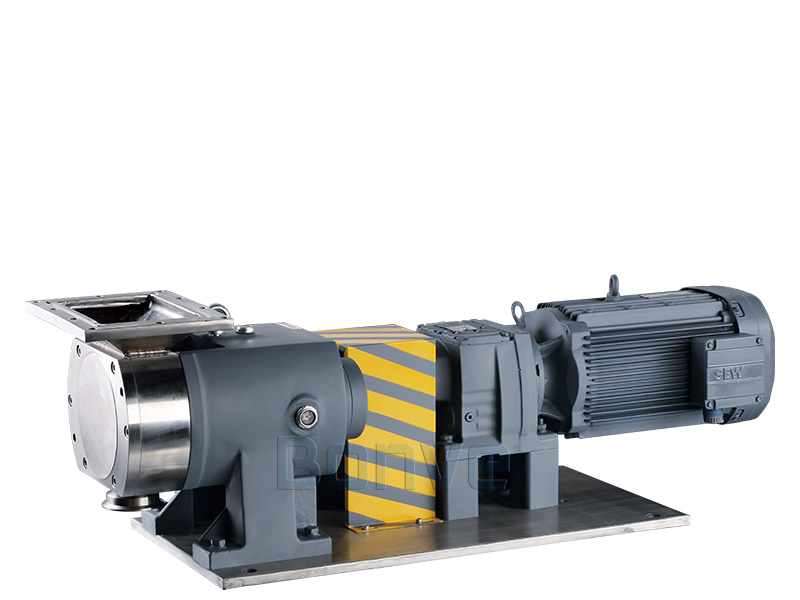

The High Viscosity Liquid Transfer Pump for Paste is specially designed for transferring high-viscosity liquids, semi-solid materials, and paste products with stable, continuous flow. Featuring a positive displacement rotary lobe design and an enlarged rectangular inlet, this pump efficiently handles thick materials containing soft particles without clogging or damaging the product. It is widely used in food, chemical, pharmaceutical, and cosmetic industries where hygienic and reliable pumping performance is required.
Features
- Positive displacement rotary lobe pump
- Designed for high viscosity liquids up to 1,500,000 cP
- Enlarged rectangular inlet for semi-solid products
- Low-speed, high-torque operation
- Gentle, low-shear product transfer
- Interchangeable rotor design
- CIP & SIP compatible
- Easy maintenance with compact structure
- Precision CNC manufactured components
- No contact between rotors for longer service life
- Multiple seal options for leak-free operation
- Available as bare shaft pump or complete pump unit
Applications
- Paste Transfer
- Meat Slurry
- Sausage Paste
- Tomato Paste
- Peanut Butter
- Chocolate Paste
- Jam
- Honey
- Syrup
- Cream
- Cosmetic Paste
- Adhesive
- Chemical Paste
- Pharmaceutical Products
Technical Advantages
- Flow Capacity up to 400 m³/h
- Pressure up to 1.2 MPa
- Maximum Vacuum: -0.095 MPa
- Maximum Viscosity: 1,500,000 cP
- Available in SS304, SS316, SS316L & Duplex Stainless Steel
- Clamp, Thread, or Flange Connection
- Horizontal or Vertical Port Configuration
- Fixed or Mobile Installation Available
Typical Media
- Meat Slurry
- Sausage Paste
- Tomato Paste
- Peanut Butter
- Chocolate Paste
- Jam
- Honey
- Cream
- Cosmetic Paste
- Resin
- Adhesive
- Detergent Paste
- Chemical Slurry
- High Viscosity Liquids
