Description

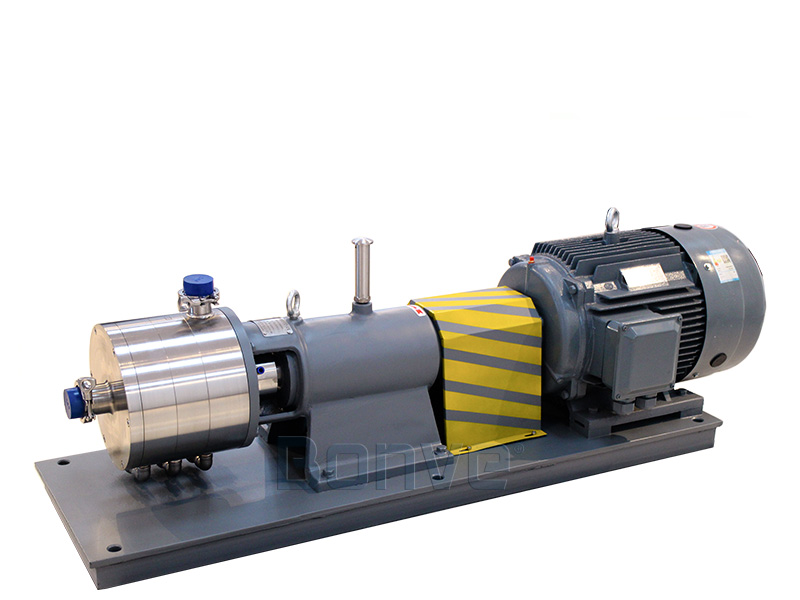

The Inline High Shear Emulsifying Mixer for Food Starch Dispersion is specially designed for continuous mixing, dispersing, homogenizing, emulsifying, and dissolving starch used in food processing applications. It efficiently disperses native and pregelatinized starch into liquids, preventing agglomeration while ensuring rapid hydration and uniform product consistency.

Equipped with a precision-engineered rotor-stator system, the mixer generates powerful centrifugal force, hydraulic shear, turbulence, and fluid impact to quickly break down starch agglomerates and evenly distribute particles throughout the mixture. This high-shear process significantly reduces mixing time, improves starch yield, and enhances product quality compared with conventional agitators or mixers.

Available in FHM1 (One-Stage) and FHM3 (Three-Stage) configurations, the mixer is suitable for continuous inline processing or batch circulation systems. Manufactured from premium SS316 stainless steel, it meets hygienic food processing requirements and can be integrated with a Bonve Rotary Lobe Pump when handling highly viscous products.

Features

• Inline high shear emulsifying technology
• Rapid starch dispersion without agglomeration
• High-speed rotor-stator homogenizing system
• Mixing, dispersing, homogenizing, and emulsifying in one process
• Fast hydration of native and pregelatinized starch
• Uniform particle distribution
• Continuous inline or batch processing
• High production efficiency with reduced processing time
• SS316 sanitary stainless steel construction
• Easy maintenance and automatic control compatibility
• Available in One-Stage (FHM1) and Three-Stage (FHM3) models
• Compatible with rotary lobe pump feeding systems

Applications

• Food Starch Dispersion
• Corn Starch Processing
• Tapioca Starch Mixing
• Potato Starch Processing
• Rice Starch Dispersion
• Sauce Production
• Soup Manufacturing
• Gravy Production
• Bakery Ingredients
• Dairy Processing
• Beverage Manufacturing
• Food Additive Processing

Technical Advantages

• Capacity: Up to 120 m³/h (depending on model)
• Motor Power: 7.5–160 kW
• Rotation Speed: 1400–2900 RPM
• Discharge Pressure:
  • FHM1: Up to 0.15 MPa
  • FHM3: Up to 0.30 MPa
• Available in One-Stage or Three-Stage Rotor-Stator Design
• Standard Material: SS316
• Optional Materials: SS304, SS316L
• Maximum Seal Temperature: 150°C
• Connection Options: Flange (Standard), Clamp or Thread (Optional)
• Recommended to combine with Rotary Lobe Pump for high-viscosity products or higher inlet pressure requirements.
