Description

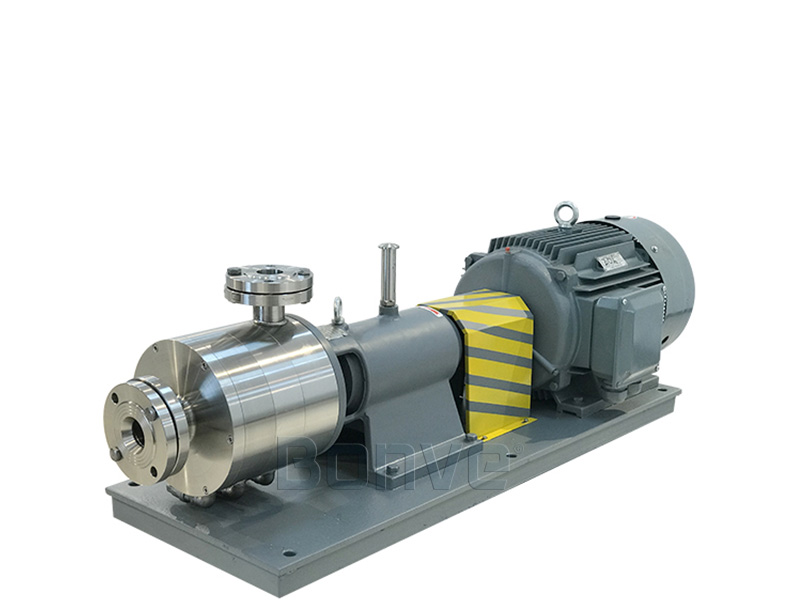

The Inline High Shear Mixer for Agrochemical Processing is specially designed for continuous mixing, dispersing, homogenizing, emulsifying, and dissolving applications in agrochemical manufacturing. It is ideal for producing pesticides, herbicides, fungicides, insecticides, liquid fertilizers, and other agricultural chemical formulations that require uniform particle distribution and stable suspensions.

Equipped with a precision-engineered rotor-stator system, the mixer generates intense centrifugal force, hydraulic shear, turbulence, and impact to rapidly break down particles and disperse solids into liquids. This high-shear process eliminates agglomeration, improves product consistency, and significantly reduces production time compared to conventional mixing methods.

Available in FHM1 (single-stage) and FHM3 (three-stage) configurations, the mixer can be selected according to processing requirements. Manufactured from high-quality SS316 stainless steel as standard, it offers excellent corrosion resistance and can be integrated with a rotary lobe pump for handling high-viscosity products and improving feeding efficiency.

Features

• Inline high shear mixing technology
• High-speed rotor-stator homogenizing system
• Mixing, dispersing, homogenizing, and emulsifying in one process
• Rapid powder-liquid mixing
• Quickly dissolves solids without agglomeration
• Uniform particle size distribution
• Continuous processing capability
• High production efficiency with low energy consumption
• SS316 stainless steel construction
• Easy maintenance and automatic control compatibility
• Available in single-stage and three-stage configurations
• Compatible with rotary lobe pump feeding systems

Applications

• Pesticide Manufacturing
• Herbicide Production
• Fungicide Processing
• Insecticide Manufacturing
• Liquid Fertilizer Production
• Agrochemical Suspension Preparation
• Wettable Powder Dispersion
• Emulsion Concentrate Production
• Chemical Mixing
• Specialty Chemical Manufacturing

Technical Advantages

• Capacity: Up to 120 m³/h (depending on model)
• Motor Power: 2.2–160 kW
• Rotation Speed: 2900 RPM
• One-Stage (FHM1) or Three-Stage (FHM3) Rotor-Stator Design
• Standard Material: SS316
• Optional Materials: SS304, SS316L
• Maximum Seal Temperature: 150°C
• Connection Options: Flange (Standard), Clamp or Thread (Optional)
• Suitable for Continuous or Batch Processing
• Can be integrated with Rotary Lobe Pumps for high-viscosity applications.
