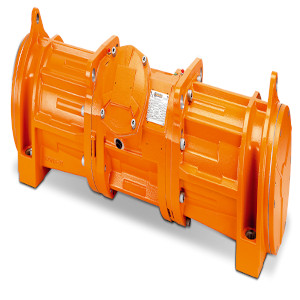

ITALVIBRAS Vibrator Motor Type MVTX
Brand : Italvibras
Type : MVTX15/3500-G/D ~ MVTX15/7900-G/D
Sizes : 70 ~ 90
Static Moment (kgmm), 50 Hz : 1369 ~ 3147
Static Moment (kgmm), 60 Hz : 951 ~ 2191
Power supply
Three-phase voltage from 120V to 690V (limit at 600V for UL and CSA certification), 50Hz or 60Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.
Polarity : 4 poles typical. 2, 6, 8 poles also available.
Functioning : Continual service (S1) at maximum declared centrifugal force and electric power.
Centrifugal force : Range extended to 17450 lbs.(78KN)
Insulation class : Class F (311°F).
Electric motor
Three-phase asynchronous type. Insulated windings using the “drop by drop” trickle system with Class H resin. The rotor is die cast aluminum.
