Description

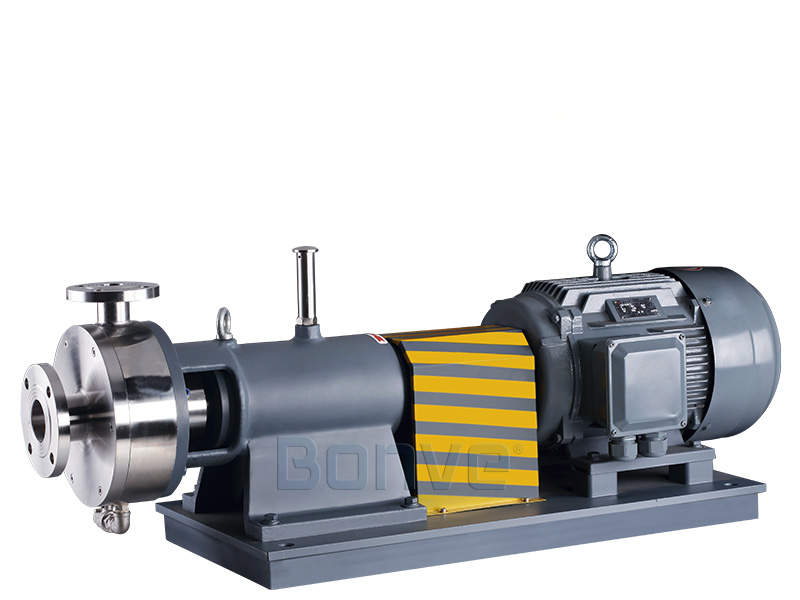

The Industrial High Shear & High Speed Emulsifying and Homogenizing Mixer is a high-performance inline processing system designed for continuous mixing, dispersion, homogenization, emulsification, refining, dissolution, and pumping of liquid, solid-liquid, and gas-liquid materials. By integrating multiple processing functions into a single machine, it simplifies traditional production processes while significantly improving productivity and product quality.

The mixer utilizes a precision-engineered rotor-stator system that generates powerful centrifugal force, hydraulic shear, turbulence, and fluid impact. These forces rapidly break down particles, disperse solids, create stable emulsions, and produce highly homogeneous products with consistent particle size distribution. It is an ideal replacement for conventional colloid mills, ball mills, and high-pressure homogenizers in many industrial applications.

Available in both FHM1 Single-Stage and FHM3 Three-Stage configurations, the mixer can be selected according to production capacity and processing requirements. Manufactured from premium SS316 stainless steel as standard, it provides excellent corrosion resistance and hygienic performance. For highly viscous materials, it can be combined with a Bonve Rotary Lobe Pump to improve feeding performance and overall system efficiency.

Features

• High shear inline mixing technology
• High-speed rotor-stator homogenizing system
• Mixing, dispersing, emulsifying, homogenizing, refining, and pumping in one machine
• Rapid particle size reduction
• Produces stable emulsions and suspensions
• Continuous or batch processing capability
• Available in Single-Stage (FHM1) and Three-Stage (FHM3)
• High production efficiency
• SS316 stainless steel construction
• Easy maintenance with modular design
• Compatible with automatic control systems
• Can be integrated with rotary lobe pumps for high-viscosity products

Applications

• Food Processing
• Dairy Products
• Beverage Manufacturing
• Pharmaceutical Production
• Cosmetic Manufacturing
• Chemical Processing
• Petrochemical Industry
• Paint & Coating Production
• Adhesive Manufacturing
• Paper Industry
• Agrochemical Processing
• Environmental Protection Systems
• Resin Emulsion Production
• Textile Chemicals

Technical Advantages

• Capacity:
  • FHM1: Up to 80 m³/h
  • FHM3: Up to 120 m³/h
• Motor Power: 7.5–160 kW
• Rotation Speed:
  • 2900 RPM (standard models)
  • 1400 RPM (large capacity models)
• Maximum Discharge Pressure:
  • FHM1: Up to 0.15 MPa
  • FHM3: Up to 0.30 MPa
• Rotor-Stator Options:
  • Single-Stage (FHM1)
  • Three-Stage (FHM3)
• Standard Material: SS316
• Optional Materials: SS304, SS316L
• Maximum Seal Temperature: 150°C
• Connection Options: Flange (Standard), Clamp or Thread (Optional)
• Recommended to combine with Rotary Lobe Pump for high-viscosity products requiring higher inlet pressure.
