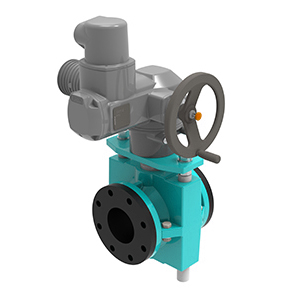

Electric-Operated Pinch Valve
Electric-Operated Pinch Valve
Pinch valves are ideal valves for fluids containing solid particles or contaminants to isolate and regulate pipelines. Because the sleeve is the only part in touch with the medium, it is extremely resistant to wear and corrosion. Even if complicated chemical processes are occurring in the pipeline, the pinch valve is still easy to handle them. Its applications include power plants, sewage treatment plants, mining, and chemical process control.
Description
Specifications
Body Material: Cast Iron, Cast Steel, Aluminium
Size: DN25 to DN1000
Nominal Pressure: PN16
Valve Type: Straight Through
Max. Working Pressure: 2.5MPa
Max. Shutoff Differential Pressure: 0.25MPa
Full Travel Loading Time(Open to Close): ≤3S
Effective Diameter: 25 to 1000mm
Leakage Class: IV. (Refer to standard API598)
Connection Type: Flange
