Description

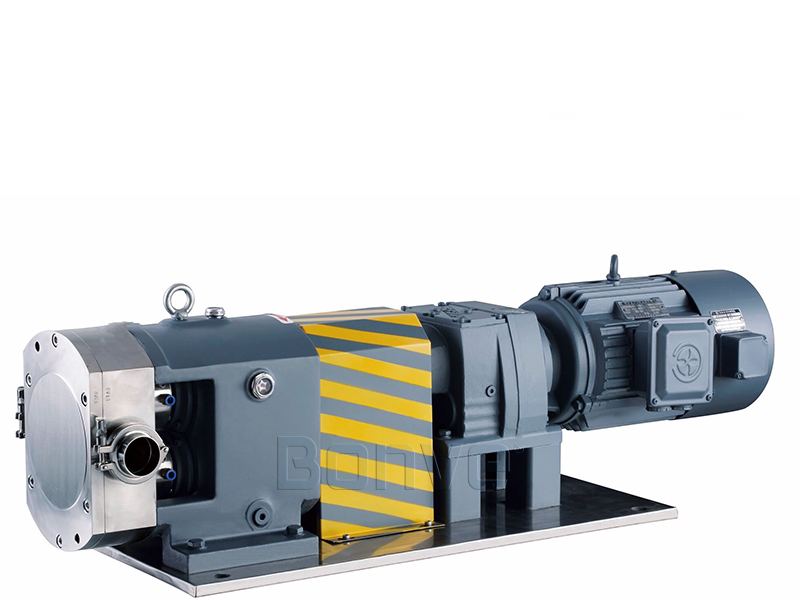

The Food Grade Lobe Pump for Ketchup Transfer is specially designed for hygienic and efficient transfer of ketchup, tomato sauce, tomato paste, and other high-viscosity food products. Its positive displacement rotary lobe design provides stable flow and gentle low-shear pumping to maintain product texture, consistency, and nutritional quality during processing.

Manufactured from high-quality stainless steel with precision CNC-machined components, this food grade lobe pump provides excellent corrosion resistance and reliable performance when handling acidic food products such as ketchup containing vinegar. The hygienic design ensures easy cleaning, low maintenance, and long service life in food processing environments. (bonvepumps.com)

With CIP/SIP compatible construction and smooth internal surfaces, this rotary lobe pump is an ideal solution for ketchup production lines, sauce processing, filling systems, and other applications requiring sanitary and reliable product transfer. (bonvepumps.com)

Features

• Food-grade stainless steel construction (SS304 / SS316 / SS316L)
• Positive displacement rotary lobe pump design
• Low-shear operation to preserve ketchup texture and quality
• Suitable for high-viscosity sauces and tomato products
• Corrosion-resistant construction for acidic products
• Precision CNC-machined pump components
• No contact between rotors and pump chamber
• Reduced product damage during transfer
• Hygienic design with smooth internal surfaces
• CIP & SIP compatible
• Easy assembly, cleaning, and maintenance
• Few wearing parts for longer service life
• Multiple rotor and seal options available

Applications

• Ketchup Transfer
• Tomato Sauce Transfer
• Tomato Paste Processing
• Sauce Production Lines
• Food Filling Systems
• Condiment Manufacturing
• Chili Sauce Processing
• Mayonnaise Transfer
• Thick Sauce Transfer
• Food Processing Applications

Technical Advantages

• Flow Capacity: Up to 400 m³/h
• Maximum Pressure: Up to 1.2 MPa
• Maximum Vacuum: Up to -0.095 MPa
• Maximum Viscosity: Up to 1,500,000 cP
• Available Materials: SS304, SS316, SS316L & Duplex Stainless Steel
• Connection Options: Clamp, Thread, or Flange
• Port Configuration: Horizontal or Vertical
• Available Options: Bare Shaft Pump or Complete Pump Unit
• Rotor Options: Bi-Wing, Tri-Lobe, and Multi-Impeller
