Description

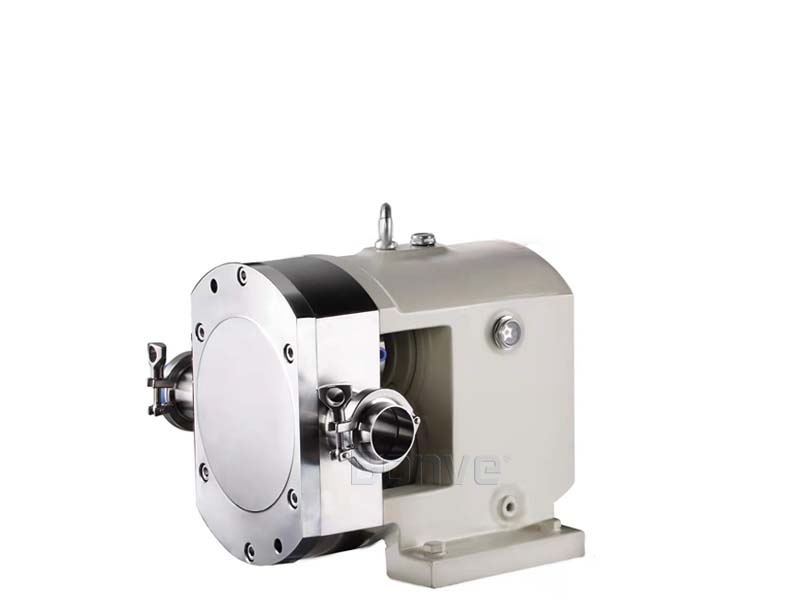

The Sanitary Grade Lobe Pump for Sesame Sauce, Peanut Butter & Mustard Transfer is specially designed for hygienic transfer of high-viscosity food products such as sesame sauce, peanut butter, mustard, and other thick condiments.

Its positive displacement rotary lobe design provides smooth and stable pumping performance while maintaining product quality, texture, and consistency during processing. The pump is suitable for handling products after homogenization and emulsification processes where high viscosity becomes a challenge for conventional pumps.

Manufactured with sanitary stainless steel construction and precision-engineered components, this lobe pump provides reliable operation, easy cleaning, and excellent durability for food processing applications. The hygienic design supports CIP/SIP cleaning processes, making it ideal for continuous production environments.

Features

• Food-grade stainless steel construction
• Positive displacement rotary lobe pump design
• Suitable for high-viscosity condiment transfer
• Smooth and low-shear pumping operation
• Maintains product texture and consistency
• Suitable for thick and sticky food products
• Hygienic design with stainless steel wetted parts
• Precision CNC-machined components
• No contact between rotors and pump chamber
• Easy disassembly, cleaning, and maintenance
• CIP & SIP compatible
• Low wear and long service life
• Multiple seal options available

Applications

• Sesame Sauce Transfer
• Peanut Butter Transfer
• Mustard Transfer
• Chili Sauce Processing
• Sauce Production Lines
• Condiment Manufacturing
• Food Filling Systems
• Thick Paste Transfer
• High Viscosity Food Processing

Technical Advantages

• Flow Capacity: Up to 400 m³/h
• Maximum Pressure: Up to 1.2 MPa
• Maximum Vacuum: Up to -0.095 MPa
• Maximum Viscosity: Up to 1,500,000 cP
• Available Materials: SS304, SS316, SS316L & Duplex Stainless Steel
• Connection Options: Clamp, Thread, or Flange
• Port Configuration: Horizontal or Vertical
• Available Options: Bare Shaft Pump or Complete Pump Unit
