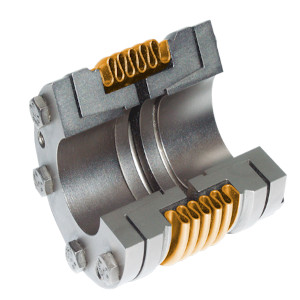

MAYR Roba Coupling -DX
The success of the servomotor and its increasing application in drives of all kinds, also set new requirements for coupling. In a majority of the applications the coupling must provide a torsional rigid and backlash-free connection between motor shaft and output shaft, for example ball screw drives.
There is a coupling especially designed for these requirements and is, therefore, the ideal coupling for your servodrive.
- Misalignment Capability
- Backlash-free Torque Transmission
- Low Inertia
- high Torsional Stiffness
- Temperatures
- High Speed Performance
- Time Saving Assemblies
- Maintenance Free
Technical Data
Size : 0 ~ 5
Coupling Nominal Torque (TKN, Nm) : 30 ~ 600
Max. Speed (Nmax, Rpm) : 6300 ~ 13000
Torsional Stiffness (CT, Nm/rad) : 11000 ~ 140000
Axial Stiffness (Cn, N/mm) : 110 ~ 200
Screw Tightening Torque Taper Bushing (AF, Nm) : 2,9 ~ 17
Screw Tightening Torque Clamping hub (AF1, Nm) : 5 ~ 87
