Heat Shutdown On-Off Valve

The Thermal Shut-off valve focuses on the process of conveying flammable media, which plays the role of cutting off the flammable medium and protecting the safety of personnel, and also protects the further rapid spread of fire. Especially suitable for fuel, alcohol, toxic chemicals, chemical solvents, or other flammable toxic media.

Size:

1/2' ~ 12'

ANSI Class:

150 ~ 300LB, PN16 ~ PN64

Body Materials:

A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3

Description

Heat Shutdown On-Off Valve Specifications

Body Size: 1/2″(DN15)～12″(DN300)

Fusing Temperature: 165°F（74°C), 212°F（100°C)

Material: Carbon Steel, Stainless Steel, Lining Fluorine

Body Type: Ball Valve, Butterfly Valve

Connection Type: For Ball Valve( Threaded, Welding, Flanged), Butterfly Valve(Wafer, Flanged, Lugged)

Application Medium: Ammonia, Gas, Liquefied Gas, Methanol, Oil, Combustible Gas/Liquid

1 fusible link valve, ball valve with fusible link

1 fusible link valve, ball valve with fusible link

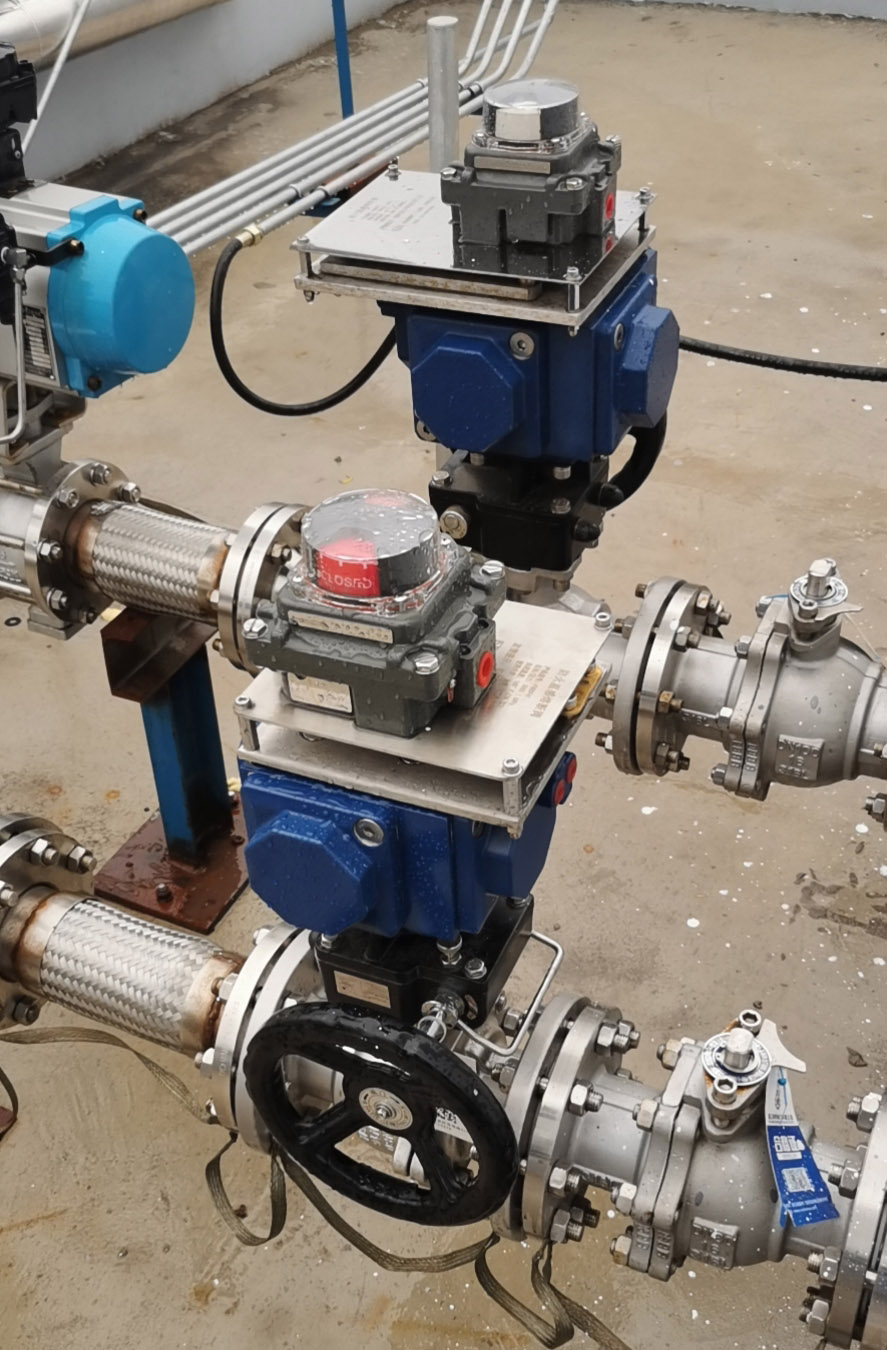

Signal Switch Feedback Device

The feedback signal of the limit switch is combined to indicate the valve opening and closing position. The appearance design is exquisite, and the installation with the actuator is more compact and convenient. The device can effectively monitor the specific switching status of the valve and realize the local and remote monitoring functions.

fusible link valve ball flange

fusible link valve ball flange

Precautions for testing and maintenance:

When testing or repairing the fused emergency shut-off valve, the switch device (valve) installed upstream must be turned off. The fused emergency shut-off valve only operates in emergency situations. In order to enable it to operate correctly in an emergency, it should be manually opened and closed more than three times a year to avoid debris deposits or other conditions that may cause the valve to not work properly.
