Description

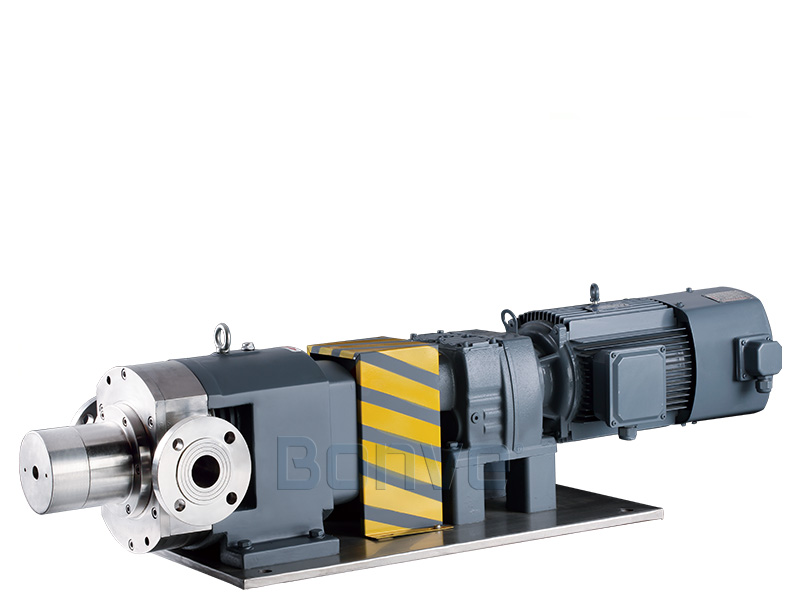

The Stainless Steel Tri-Lobe Rotary Lobe Pump for Soap Transfer is specially designed for handling soap base, liquid soap, caustic soda, fatty acids, and other corrosive media used in soap and detergent manufacturing. Its positive displacement tri-lobe rotor design provides smooth, low-shear pumping with stable flow, making it ideal for continuous production processes.

Constructed from premium SS316 stainless steel, the pump offers excellent corrosion resistance against highly alkaline soap formulations and chemical additives. The advanced tri-lobe rotor design minimizes pulsation while improving pumping efficiency and extending equipment life. A specially engineered water circulation cooling seal system provides reliable sealing performance under high-temperature, high-pressure operating conditions.

Designed for modern daily chemical production lines, this rotary lobe pump delivers reliable performance, low maintenance requirements, and easy integration with homogenizing and mixing systems, making it an ideal solution for soap manufacturing and chemical processing applications.

Features

• SS316 stainless steel construction
• Positive displacement tri-lobe rotary pump design
• Water circulation cooling seal system
• Excellent corrosion resistance
• Low-shear pumping to preserve product quality
• Stable flow with low pulsation
• Handles high-temperature soap media
• High-pressure sealing performance
• Non-contact rotor design for minimal wear
• High pumping efficiency
• Easy maintenance with compact construction
• Long service life with low operating costs

Applications

• Liquid Soap Transfer
• Soap Base Transfer
• Caustic Soda Transfer
• Fatty Acid Transfer
• Soap Manufacturing
• Detergent Production
• Personal Care Products
• Daily Chemical Processing
• Chemical Mixing Systems

Technical Advantages

• Flow Capacity: Up to 350 m³/h
• Maximum Pressure: Up to 1.2 MPa
• Maximum Vacuum: Up to 0.08 MPa
• Pump Efficiency: Up to 90%
• Maximum Viscosity: Up to 1,500,000 cP
• Handles Solids: Up to 60%
• Available Materials: SS304, SS316, SS316L
• Water Circulation Cooling Mechanical Seal
• Connection Options: Clamp, Thread, or Flange
• Available as Bare Shaft Pump or Complete Pump Unit
